35cm 8dbi high gain omni direction weather proof fiber glass 2.4GHz wifi antenna

  • 35cm 8dbi high gain omni direction weather proof fiber glass 2.4GHz wifi antenna
  • 35cm 8dbi high gain omni direction weather proof fiber glass 2.4GHz wifi antenna
  • 35cm 8dbi high gain omni direction weather proof fiber glass 2.4GHz wifi antenna
Model No.︰WK-WIFI069-N
Brand Name︰Walk
Country of Origin︰China
Unit Price︰US $ 17 / pc
Minimum Order︰10 pc
Share on:

 Total 58 Related Items
Prev4748495051Next

Product Description

WiFi Antenna/2.4GHz Antenna/Zigbee Antenna Specifications:

Part Number: WK-WIFI069-N

WIFI antenna Specification

Frequency Range

2400-2500MHz

V.S.W.R

2.0:1

Gain

8.0dBi

Polarization

Vertical

Radiation

Omni directional

Max Input power(W)

50

Impedance

50 ohm

Max wind speed

200km/h

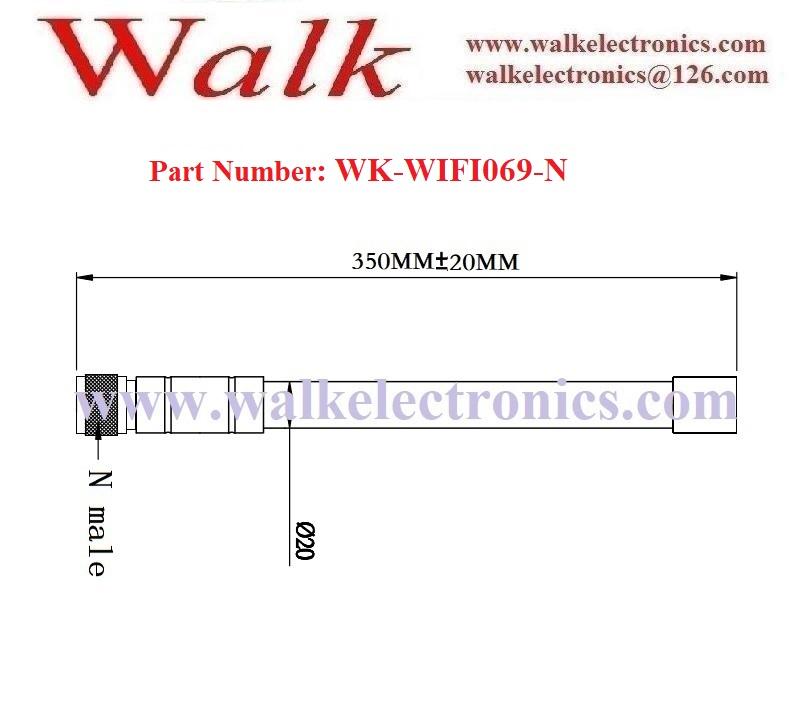

Mechanical Specifications

Size

350mm high

Weight

<500g

Connector

N male straight, N female, TNC or others

Housing

Fiber glass

Mount

Pole(bracket)

Environmental Specification

Working Temp

-40℃~+85℃

Vibration

Sine sweep 1g(0-p), 10~50~10Hz each axis

Humidity

95%~100%RH

MTBF=1×10-6/pc.hr

40℃±5℃, 2000pcs  For 480h



Payment Terms︰TT in advance; Western Union; Paypal
Lead Time︰5-8 days
