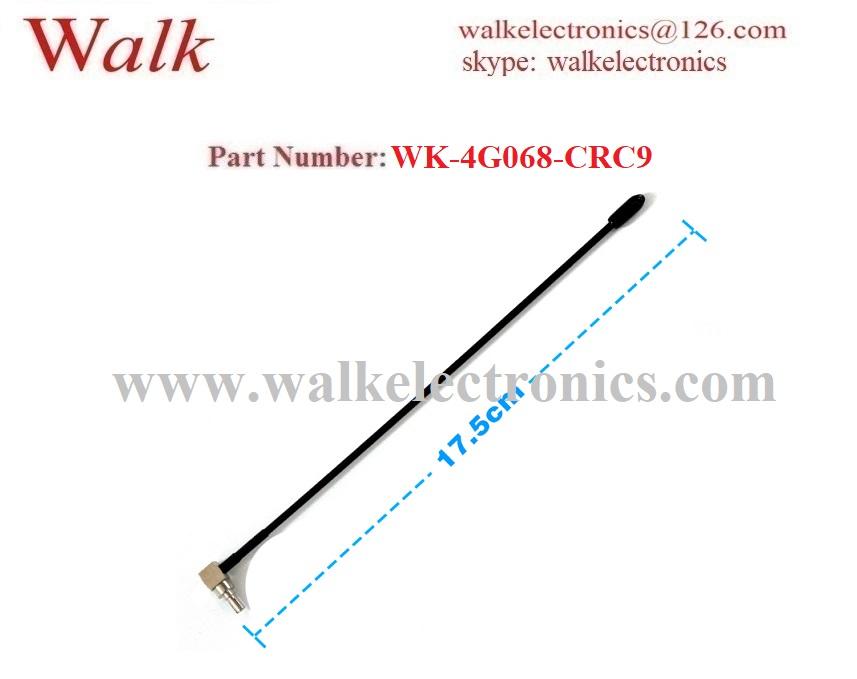

omni directional 5dBi CRC9 male angle 4G LTE antenna flexible crc9 antenna

  • omni directional 5dBi CRC9 male angle 4G LTE antenna flexible crc9 antenna
  • omni directional 5dBi CRC9 male angle 4G LTE antenna flexible crc9 antenna
  • omni directional 5dBi CRC9 male angle 4G LTE antenna flexible crc9 antenna
Model No.︰WK-4G068-CRC9
Brand Name︰SZ.Walk
Country of Origin︰China
Unit Price︰US $ 2.4 / pc
Minimum Order︰10 pc
Share on:

 Total 76 Related Items
Prev1314151617Next

Product Description

3G/4G/LTE Antenna Specifications:

Part Number: WK-4G068-CRC9

4G/LTE antenna Specification

Frequency Range

698-960/1710-2700MHz

V.S.W.R

2.7:1

Gain

5.0dBi

Polarization

Vertical

Radiation

Omni directional

Max Input power(W)

50

Impedance

50 ohm

Max wind speed

200km/h

Mechanical Specifications

Size

175mm

Weight

<100g

Connector

CRC9 male right angle, TS9, MCX, SMA or others

Mounting

Flexible

Housing

N/A

Environmental Specification

Working Temp

-40℃~+85℃

Vibration

Sine sweep 1g(0-p), 10~50~10Hz each axis

Humidity

95%~100%RH

MTBF=1×10-6/pc.hr

40℃±5℃, 2000pcs  For 480h



Payment Terms︰TT in advance; Western Union; PayPal
Lead Time︰5-7 days
