adhesive mount high gain internal built in active pcb gps antenna

  • adhesive mount high gain internal built in active pcb gps antenna
  • adhesive mount high gain internal built in active pcb gps antenna
  • adhesive mount high gain internal built in active pcb gps antenna
  • adhesive mount high gain internal built in active pcb gps antenna
Model No.︰WK-GPS005
Brand Name︰Walk
Country of Origin︰China
Unit Price︰US $ 2.5 / pc
Minimum Order︰10 pc
Share on:

 Total 17 Related Items
Prev7891011Next

Product Description

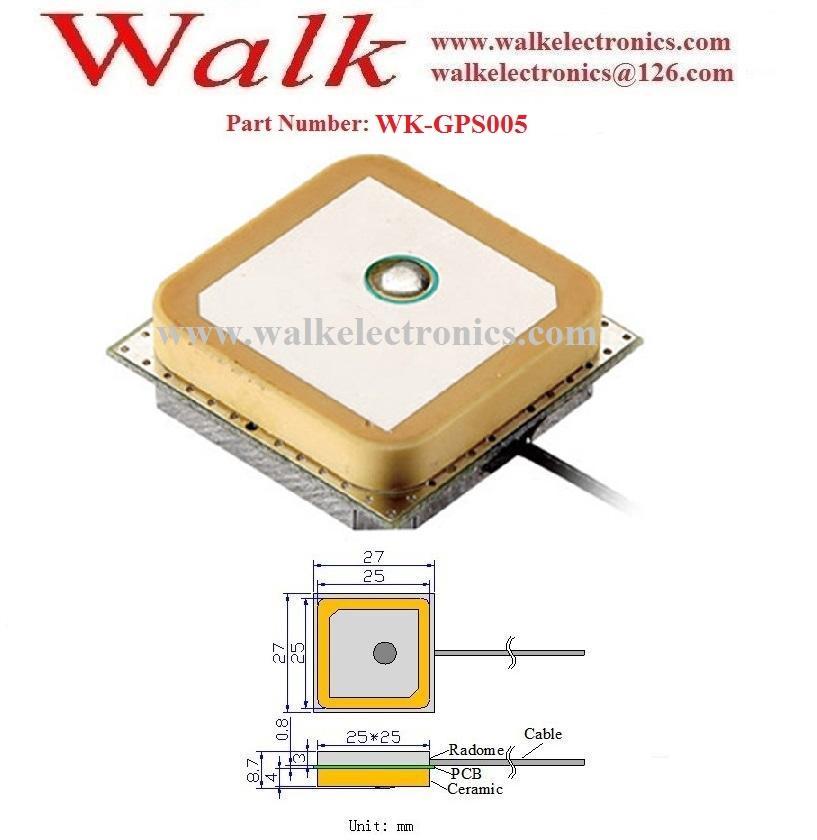

Internal PCB GPS Active Antenna Specifications:

Part Number: WK-GPS005

Dielectric Antenna Specification

Size

25x25x4mm

Center Frequency

1575.42±1MHz

Frequency Range

CF±5MHz

V.S.W.R

1.5:1

Attenuation

fo±100MHz>30dB

Impedance

50 ohm

Peak Gain

>3dBic, Based on 7×7cm ground plane

Gain Coverage

>-4dBic at –90°<0<+90°(over 75% Volume)

Polarization

Right-handed Circular(RHCP)

LNA specifications

LNA Gain

(Without cable)



28dB Typical

Noise Figure

1.5dB

V.S.W.R

<1.65

DC Voltage

2.7V-5.0V±0.5V

DC current

13mA   Max(5V DC)

Mechanical Specifications

Size

27x27x8.5mm

Weight

<200

Cable

200mm 1.13mm(D) cable

Connector

U.FL(IPEX) connector

Other Cable

RG178, RG174, RG316, LMR100 or others

Other Connector

SMA, SMB, FME, FAKRA or others

Mounting

Adhesive

Housing

N/A

Environmental Specification

Working Temp

-40℃~+85℃

Vibration

Sine sweep 1g(0-p), 10~50~10Hz each axis





Payment Terms︰TT in advance; Western Union
Lead Time︰5-8 days
